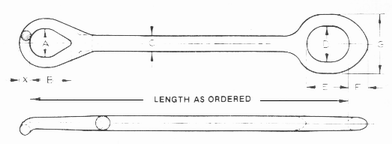

Øòðîïà äëÿ ýëåâàòîðà, ã/ï 250-750 òí.
X ( äþéì / ìì. )
À ( äþéì / ìì. )
B ( äþéì / ìì. )
C ( äþéì / ìì. )
D ( äþéì / ìì. )
E ( äþéì / ìì. )
F ( äþéì / ìì. )
G ( äþéì / ìì. )
2.1/4 (57.150)
5.1/2 (139.70)
8 (203.2)
2.7/8 (73)
8 (203.2)
10 (254)
5 (127)
14 (355.6)
2.3/4 (69.850)
5.1/2 (139.70)
8 (203.2)
3.1/2 (88.9)
8 (203.2)
10 (254)
5 (127)
14 (355.6)
3.1/2 (88.900)
6.3/4 (171.45)
10.1/8 (257.2)
4.1/2 (114.3)
9.1/2 (241.3)
12 (304.8)
6 (152.4)
17 (431.8)
4.3/4 (120.65)
7.1/2 (190.50)
12.1/2 (317.5)
5.1/2 (139.7)
9.1/2 (241.3)
12 (304.8)
7.1/4 (184.15)
19 (482.6)

ÐÀÇÌÅÐ ØÒÐÎÏ (ÄÞÉÌ / ÌÌ,)
ÍÎÌÅÐ ×ÅÐÒÅÆÀ
ÃÐÓÇÎÏÎÄÚ¨ÌÍÎÑÒÜ ÊÎÌÏËÅÊÒÀ
ÂÅÑ ÊÎÌÏËÅÊÒÀ, ÔÓÍÒ./ÊÃ.
2.1/4 õ 60 (57.15 õ 1524)
22560
250
370 / 168
2.1/4 õ 72 (57.15 õ 1828.8)
22572
250
420 / 191
2.1/4 õ 84 (57.15 õ 2133.6)
22584
250
470 / 214
2.1/4 õ 96 (57.15 õ 2438.4)
22596
250
550 / 250
2.1/4 õ 108 (57.15 õ 2743.2)
225108
250
610 / 277
2.3/4 õ 72 (69.85 õ 1828.8)
27572
350
670 / 305
2.3/4 õ 84 (69.85 õ 2133.6)
27584
350
740 / 337
2.3/4 õ 96 (69.85 õ 2438.4)
27596
350
806 / 336
2.3/4 õ 108 (69.85 õ 2743.2)
275108
350
870 / 396
2.3/4 õ 132 (69.85 õ 3352.8)
275132
350
1000 / 455
3.1/2 õ 132 (88.9 õ 3352.8)
350132
500
1460 / 664
3.1/2 õ 144 (88.9 õ 3657.6)
350144
500
1524 / 693
4.3/4 õ 144 (120.65 õ 3657.6)
475144
750
2000 / 909
